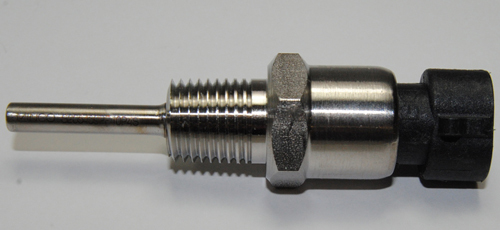

Plug Sensors: S205459PD10P2S

Product Details

Threaded plug RTD utilizes plug connection with optional mating plug. Plug sensors feature a rugged, stainless steel construction, enabling direct immersion in corrosive or other fluid streams as well as use in high-pressure applications.

For applications requiring:

  • Quick disconnect lead wire
  • Direct immersion in corrosive or other fluid streams
  • High pressure operation
  • Temperature range of -45.5 to 148.9°C (-50 to 300°F)
  • Pressure rated up to 1500 psi (103 bar)
Attributes
Element Type Platinum, Single
Resistance 100 Ω ±0.12% at 0°C
TCR 0.00385 Ω/Ω/°C
Case Diameter (in) 0.188
Length (in) 1.000
Process Thread 1/8 -27 NPT
Base Model S205459
Element Code PD
Material Stainless Steel
Temperature Range -50 to 300°C (-45.5 to 148.9°F)
Type Compact Plug Probe
Pressure Rating 1,500 psi (103 bar)
Vibration Withstands 10 to 2000 Hz at 20 G's min. per MIL-STD-202, Method 204, Test Condition D
Shock Withstands 100 G's min. sine wave shock of 8 milliseconds duration
Insulation Resistance 1,000 megohms minimum at 500 VDC
Connector Type Packard/Delphi: Metri-pack 150
Documentation
Technical Specification MCTS Compact Plug Sensor.pdf
