Product Details
| Attributes |
| Resistance |
1,000 Ω at 0°C |
| TCR |
0.00385 Ω/Ω/°C |
| Length (ft) |
50 |
| Accuracy |
±0.9°F (±0.5°C) typical |
| Enclosure |
Large Utility Box (4” x 4”) |
| Base Model |
AS570 |
| Element Code |
PF |
| Case Material |
0.531" Plenum-Rated PVC Armor |
| Approvals |
UL60730 Listed |
| Temperature Range |
-7.8 to 55°C (18 to 131°F) |
| Type |

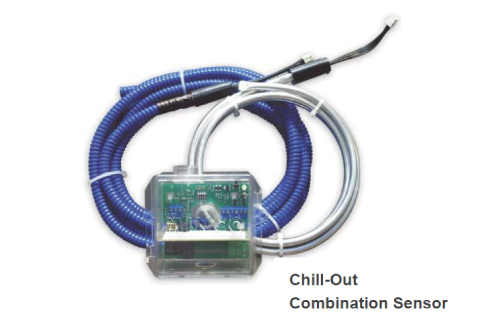

Platinum, Chill-Out |
| Relay Reset |
User Configurable |
| Output Relays |
8 SPDT Signal / 1 SPDT Power |
| Switching Temperature |
-1.1 to 6.7°C (30 to 44°F) |
| Enclosure Depth (in) |
2.50 |
| Power Requirement |
24V AC or DC |
